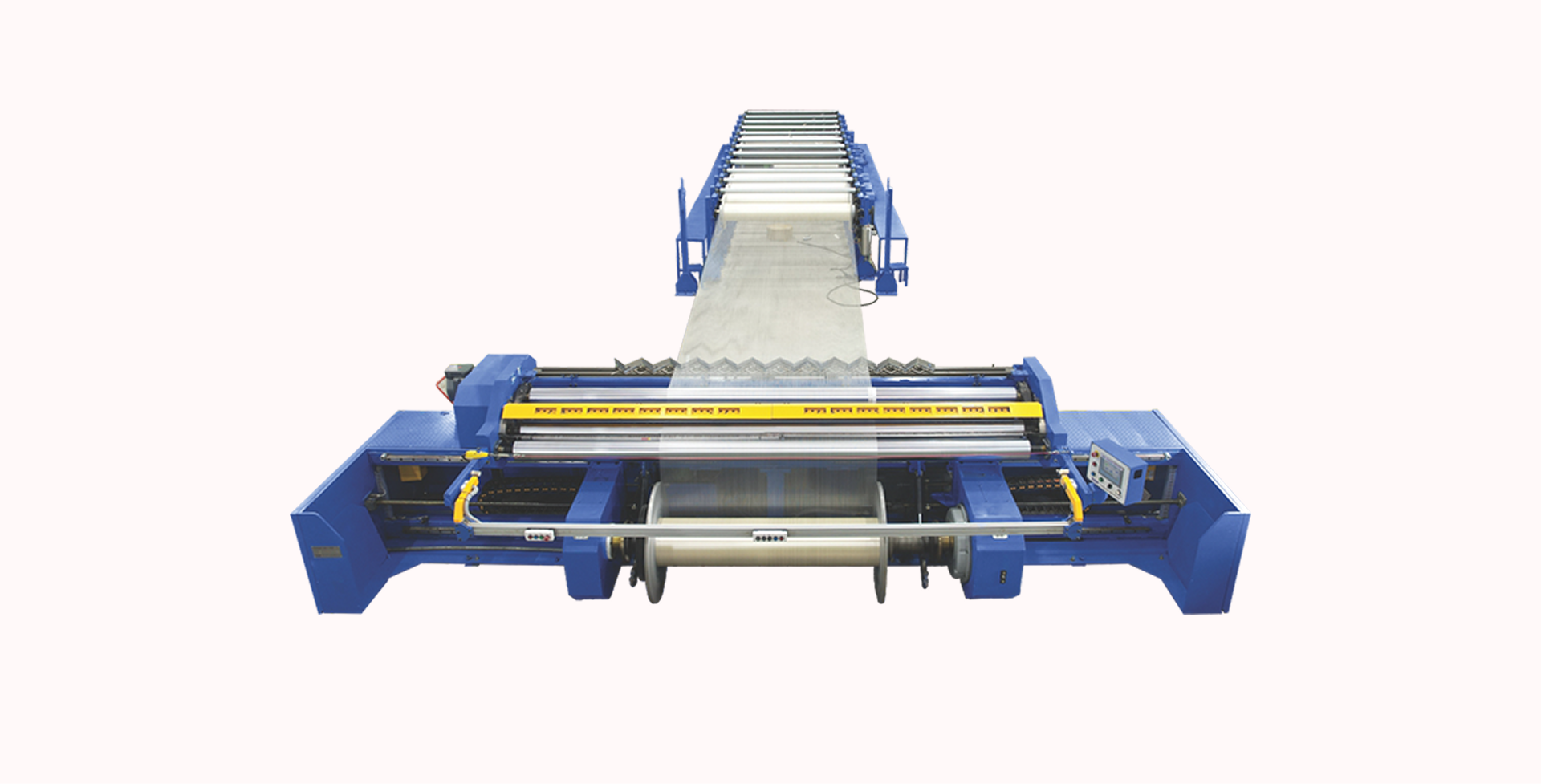

Filament Sizing Machine - Pacesetter
Leading the way in warp preparation
Salient Features
- Servo Controlled size box
- Uniform Squeezing for high quality sizing
- Steady stretch control
- Twin Servo system in size box
- Automatic size supply
- Spray bar arrangement for Size circulation
Split Rods
- Teflon coated SS rotating rods with chilled water circulating system to prevent pulp mud
- Humidifying system in Split rods to prevent Size residue from sticking to the rods
Head Stock
- Servo controlled Head stock having Max Speed up to 500 mpm
- Tension control and all operating function available on HMI
- Zigzag Traversing comb for uniform beam surface
Technical Specifications
| Beam Flange Diameter | : | 800/1000/1250/1400 mm |
| Working Width | : | 1800 mm - 2800 mm |
| Speed | : | up to 600 mpm |
